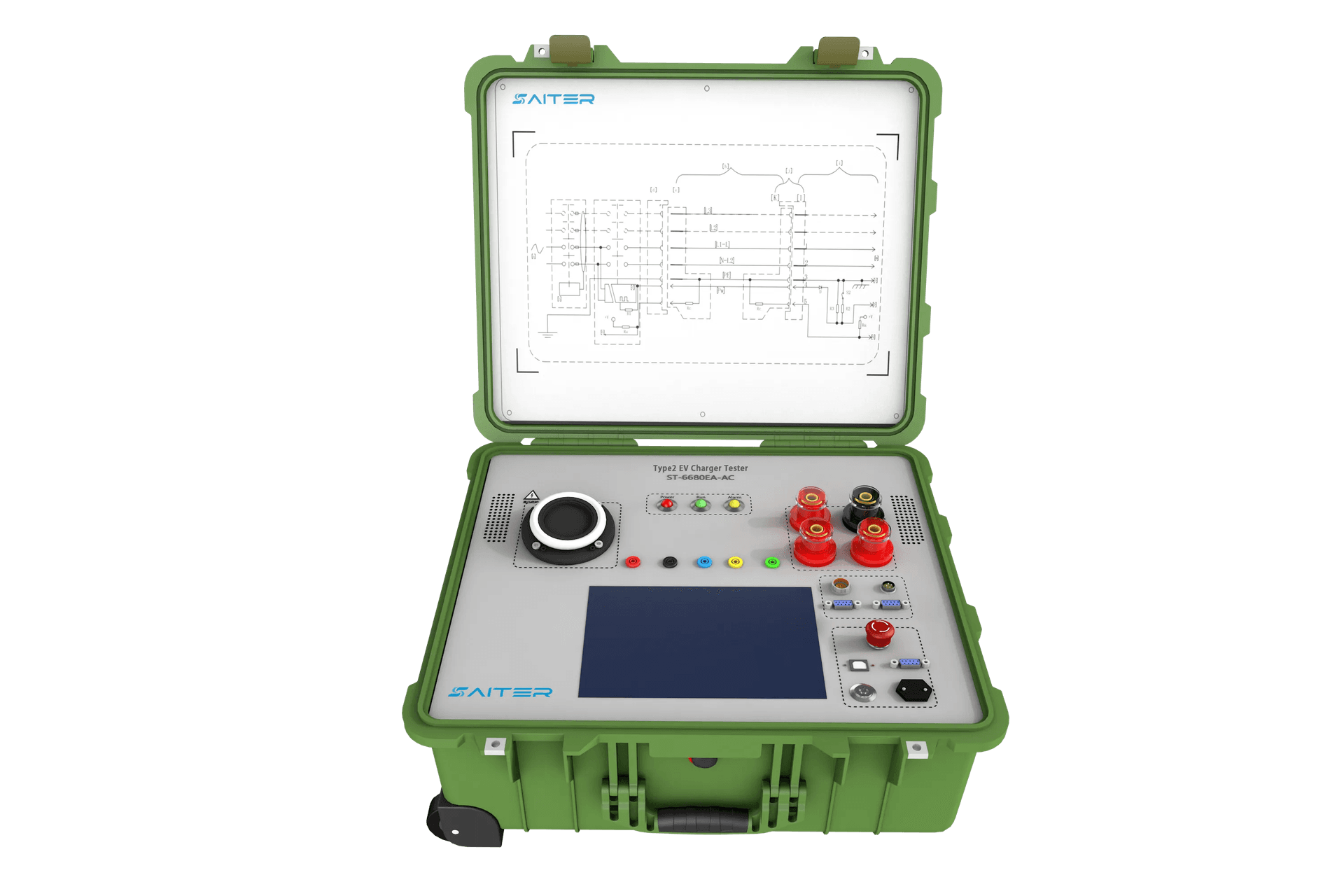

ST-6680EA-AC
Type 2 AC EV Charger Tester
Portable European Type 2 AC charger tester with PP/CP/PE simulation, live data acquisition, optional metering and IP67 field protection.
Product Overview
Type 2 AC EV Charger Tester
ST-6680EA-AC is a portable third-party tester for European Type 2 AC chargers. It supports field testing, product acceptance, R&D debugging, factory testing and inspection while reducing the need to use an EV as the test instrument. The rugged trolley case, configurable vehicle-state simulation and optional battery, GPS, environmental and metering modules make it suitable for outdoor and laboratory workflows.
Use ST-6680EA-AC for European Type 2 AC charger debugging, factory acceptance and field inspection. It reproduces pilot and continuity states without relying on a vehicle, displays live charger measurements and supports PC operation. Match the socket, load and measurement configuration to the installed charger.
Choose the right test configuration
Interface and workflow
Type 2 AC testing with a standard AC 415 V / 32 A socket. A 63 A socket is optional; confirm the complete configuration before specifying higher-current tests.
External load and connection limits
No built-in load; the listed external-load limit is 32 A. An optional 63 A socket does not by itself establish a 63 A load path.
Options and accessories
Specify optional precision metering, internal battery, GPS and environmental modules. PC software is included; IP67 applies to the closed case.
Procurement checklist
Confirm the delivered configuration before ordering
Interface and standards
Confirm the connector, market, protocol and exact standard editions required by the charger and test plan.
Electrical and load path
Separate socket, cable and measurement ratings from the source or external load used during sustained power tests.
Evidence and options
List required metering accuracy, message or waveform capture, fault cases, report fields and optional modules.
Acceptance and support
Agree supplied accessories, software, factory acceptance checks, commissioning, training and support boundaries.
Key Features
Designed for reliable EV charger validation.
- 01Supports LAN, Wi-Fi and RS232 communication for PC connection and field operation.
- 02The trolley-style protective case is waterproof, pressure-resistant, shock-resistant and corrosion-resistant. Its closed-state protection rating is IP67 and wheels and a handle support outdoor mobility.
- 03Simulates PP, CP and PE continuity states, the charging process and common faults, with vehicle states available with or without the S2 switch and adjustable vehicle-side R2/R3 resistance.
- 04Collects voltage and current in real time and displays charger parameters. Optional internal battery operation supports sites without external power.
- 05Optional GPS, temperature/humidity and metering modules provide time synchronization, precision timing and 0.05-class measurement capability.
Technical Specifications
Core specifications
| Connector Standard | Type 2 |
|---|---|
| Connector Socket | 1; AC 415 V, 32 A; 63 A optional |
| Test Object | European Type 2 AC charger |
| Sampling Accuracy | Standard ±0.5% RD (30 V≤U≤400 V; 10 A≤I≤100 A); optional ±0.05% RD (10 V≤U≤1000 V; 1 A≤I≤250 A), 0.05-class energy metering |
| Working Power | 100-240 VAC, 50 Hz; 35 W |
| Communication Interfaces | LAN, RS232, Wi-Fi |
| External Load | No built-in load; external load up to 32 A |
| Panel Signal Terminals | L1, L2, L3, N, PP, CP, PE, R2, R3 |
| Display | 10.1-inch touch screen |
| PC Software | Included |
| Operating / Storage Temperature | -20 to 50 °C / -30 to 70 °C |
| Relative Humidity | ≤90% RH (10-30 °C); ≤75% RH (30-40 °C); ≤45% RH (40-50 °C) |
| Dimensions / Weight | L561 x W455 x H265 mm; approx. 20 kg |
| Reference Standards | IEC 61851-1:2017; IEC 61851-22:2002 |
Application Scenarios
Where this product is used
Product FAQ
Common questions about ST-6680EA-AC
Can the tester replace an EV during Type 2 AC checks?
It simulates vehicle-side PP, CP and PE states and adjustable R2/R3 resistance for charging-sequence and fault checks. Sustained energy transfer still requires a suitable external load.
Does the optional 63 A socket mean all tests can run at 63 A?
No. The standard socket is 32 A and the listed external-load limit is 32 A. Confirm the complete current path, load connection and cables with the engineer before planning higher-current operation.
Which field accessories should be specified?
Confirm load cables, the optional internal battery, GPS, environmental measurement and required metering accuracy. The IP67 protection rating applies to the case when closed.
Reference application architectures
See how this equipment can fit into a laboratory, production or field workflow. Final configuration depends on the actual test scope.
