DC Charger Testing / Field Service
ST-6680EA-DC
CCS2 DC EV Charger Tester
Portable European CCS2 DC charger tester for field acceptance, interoperability testing, high-power load connection and charger diagnostics.
Product Overview
CCS2 DC EV Charger Tester

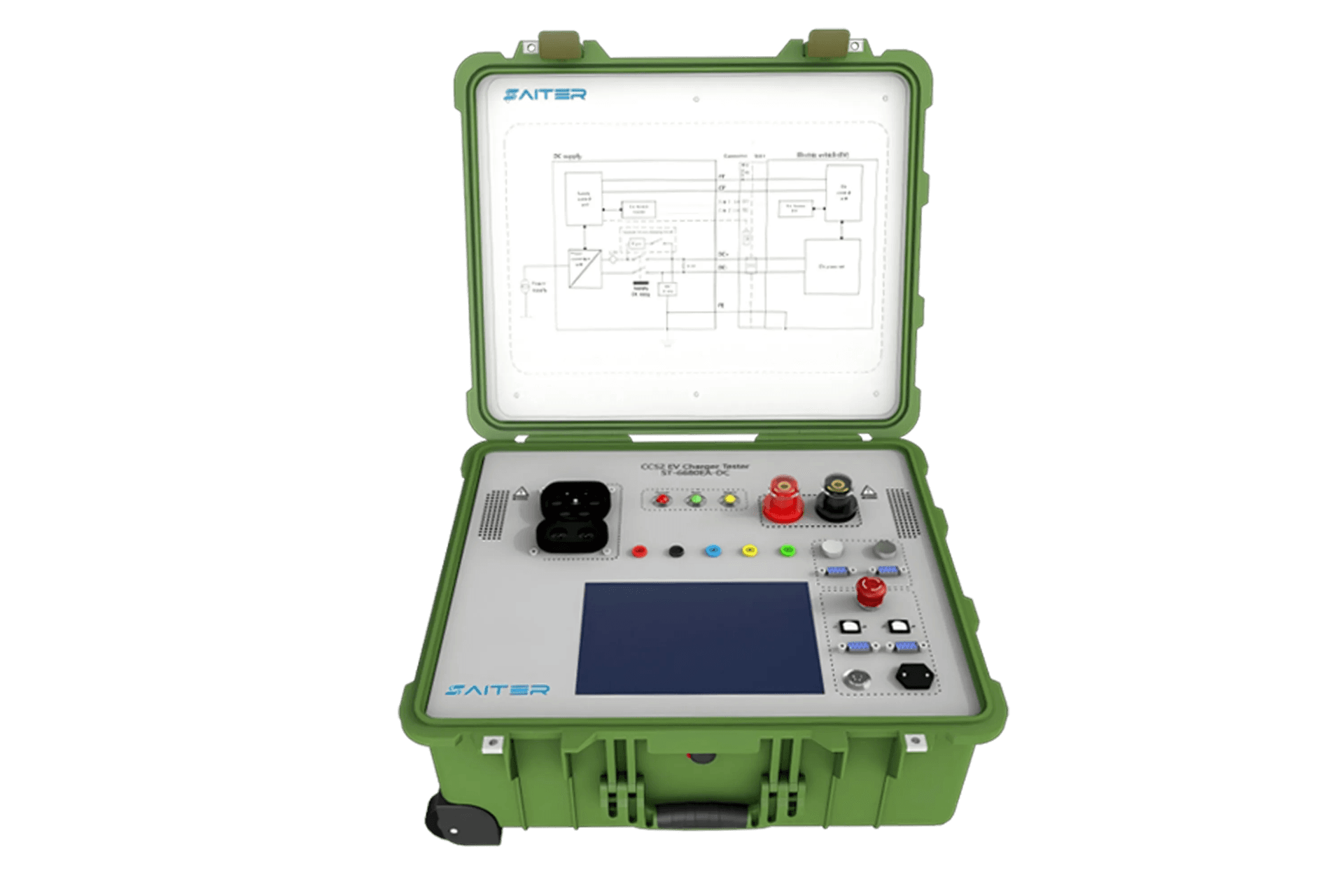

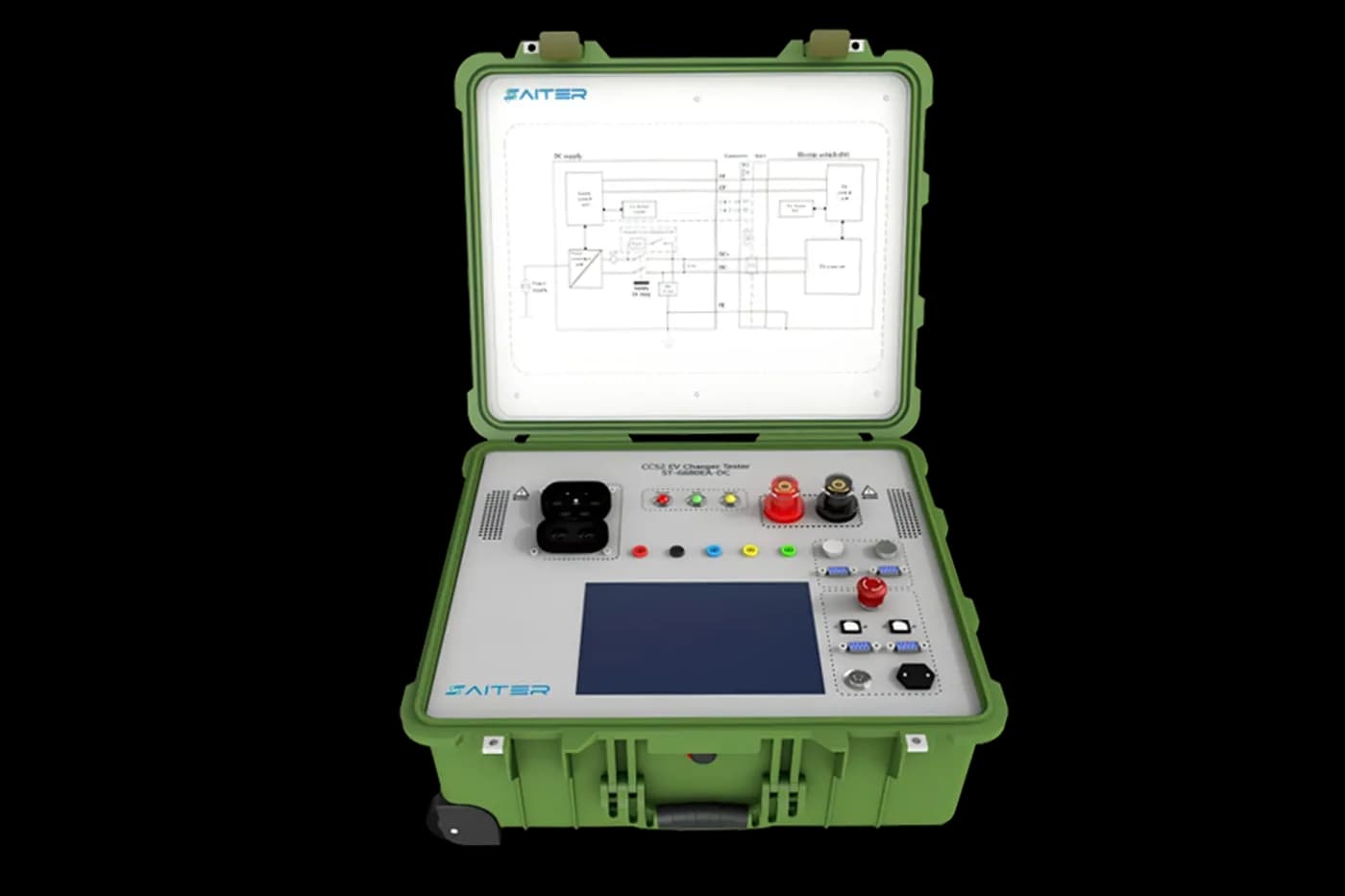

ST-6680EA-DC is a portable third-party tester for European CCS2 DC chargers. It supports charger R&D, product acceptance, field inspection and commissioning against IEC 61851, DIN SPEC 70121 and ISO 15118 requirements. The system combines a CCS2 interface, external-load connection, fault simulation, live data acquisition and a rugged IP67 trolley case.
Choose ST-6680EA-DC for CCS2 charger development, acceptance and site commissioning. It combines charging-sequence checks, live measurements and panel-controlled fault simulation in a portable platform. Review the charger protocol version, external-load arrangement and evidence requirements before configuring the test setup.
Choose the right test configuration
Interface and workflow
CCS2 DC testing with a 1000 V / 300 A socket. Define the required DIN SPEC 70121 or ISO 15118 test cases and protocol version.
External load and connection limits
Separate resistive, electronic or regenerative loads connect through the high-power load interface, up to 300 A. Specify voltage, power, cooling and control compatibility separately.
Options and accessories
Confirm optional 0.05-class metering and required cables. Included PC software supports operation; the case's IP67 rating applies when closed.
Procurement checklist
Confirm the delivered configuration before ordering
Interface and standards
Confirm the connector, market, protocol and exact standard editions required by the charger and test plan.
Electrical and load path
Separate socket, cable and measurement ratings from the source or external load used during sustained power tests.
Evidence and options
List required metering accuracy, message or waveform capture, fault cases, report fields and optional modules.
Acceptance and support
Agree supplied accessories, software, factory acceptance checks, commissioning, training and support boundaries.
Key Features
Designed for reliable EV charger validation.
- 01Provides a CCS2 DC socket rated at 1000 V and 300 A, with socket definition aligned to IEC 62196-3 requirements.
- 02External high-power load terminals and a load socket rated up to 300 A support resistive, electronic or regenerative load connections.
- 03The mobile protective case is waterproof, pressure-resistant, shock-resistant and corrosion-resistant, with an IP67 closed-state protection rating for outdoor work.
- 04Accumulates multiple test cases for charger validation and supports LAN, RS232 and Wi-Fi communication.
- 05Collects voltage and current in real time and displays charger parameters. Optional 0.05-class metering supports higher-precision verification.
- 06CP disconnection, CP grounding, DC+/- disconnection and PE pin faults can be simulated from the panel for charger protection and diagnostic tests.
Technical Specifications
Core specifications
| Connector Standard | CCS2 |
|---|---|
| Connector Socket | DC 1000 V, 300 A |
| Test Object | CCS2 DC charger |
| Sampling Accuracy | Standard ±0.5% FS (200 V≤U≤1000 V; 10 A≤I≤300 A); optional ±0.05% RD over the same ranges, 0.05-class energy metering |
| Working Power | 100-240 VAC, 50 Hz/60 Hz; 100 W |
| Communication Interfaces | LAN, RS232, Wi-Fi |
| External Load | Up to 300 A |
| Panel Signal Terminals | DC+, DC-, CP, PE, PP |
| Fault Simulation | CP open, CP ground, DC+/- open and PE pin fault |
| PC Software | Included |
| Operating / Storage Temperature | -20 to 50 °C / -30 to 70 °C |
| Relative Humidity | ≤90% RH (10-30 °C); ≤75% RH (30-40 °C); ≤45% RH (40-50 °C) |
| Dimensions / Weight | L561 x W455 x H265 mm; approx. 25 kg |
| Reference Standards | IEC 61851-1:2017; DIN SPEC 70121:2012; ISO 15118-2:2019; IEC 61851-23:2014 |
Need this model configured for your charger?
Send the connector, target standard, voltage/current range and test workflow. The form below already includes ST-6680EA-DC as the inquiry context.
Request a configuration reviewApplication Scenarios
Where this product is used
Product FAQ
Common questions about ST-6680EA-DC
Is the 1000 V / 300 A rating a built-in load rating?
It describes the CCS2 socket and test connection. Sustained charging tests use a separate compatible load; review its voltage, power and controls alongside the tester's connection limits.
Which faults can be simulated from the panel?
Listed functions include CP open, CP ground, DC+/- open and PE pin faults. Use the selected procedure to define expected charger responses and retained evidence.
How does this model differ from ST-9980EA-HPC?
ST-6680EA-DC lists a 300 A CCS2 socket; ST-9980EA-HPC lists a 500 A socket and optional PLC capture. Review the whole load path and diagnostic options rather than choosing by socket rating alone.
Reference application architectures
See how this equipment can fit into a laboratory, production or field workflow. Final configuration depends on the actual test scope.
