High-Power Duty Review

Review a proposed high-power charging duty across the entire connection and energy path. Keep interface, instrumentation, load and cooling limits distinct.

DC fast charger planning guide
Planning checklist

Requirements to confirm

  • Specify simultaneous voltage and current, duration and the intended duty profile.
  • Check cables, connectors, external loads, protection and cooling responsibilities.
  • Define operating limits, stop conditions and measurements needed for review.

Review output

A duty-envelope review with component limits and unresolved equipment dependencies.

Scope: A model name or connector rating is not evidence of full-power test operation; the complete setup requires confirmation.

Technical context

Independent testing

Integrated Measurement Plan

Coordinate electrical measurements, session states and communication records so that an engineering reviewer can follow how a charger responds to a defined stimulus.

Integrated laboratory reference architecture
Planning checklist

Requirements to confirm

  • Identify measurement points, signals and the instruments responsible for each record.
  • Specify timing alignment, identifiers and configuration information shared across logs.
  • Define retained raw data, report fields and handling of incomplete records.

Review output

A synchronized evidence plan with instrument ownership and a common record structure.

Scope: Time alignment and software integration depend on the selected tools and interfaces; automatic synchronization is not assumed.

Technical context

Independent testing

DC Charger Validation Plan

Group DC charger questions into output behavior, charging sequences and controlled protective responses, with a stated configuration and verdict rule for every planned check.

DC charger validation planning guide
Planning checklist

Requirements to confirm

  • Define connector, communication version, operating range and charger revision.
  • Allocate functional, electrical and controlled fault checks to suitable equipment.
  • Record expected responses, limits, raw measurements and open exclusions.

Review output

A DC validation matrix that separates planned scope, equipment and evidence.

Scope: A validation plan is not a completed test report or proof that all applicable safety requirements are satisfied.

Technical context

Independent testing

Protocol Test Suite Planning

Build a bounded protocol suite around named implementations and explicit message conditions. Keep functional communication checks separate from formal conformance assessment.

Protocol test planning guide
Planning checklist

Requirements to confirm

  • Identify the protocol, edition, implementation role and optional features in scope.
  • Specify preconditions, message changes, timing boundaries and expected responses.
  • Define capture topology, case identifiers and verdict evidence for each check.

Review output

A versioned protocol case list with traceable preconditions and verdict rules.

Scope: Protocol coverage and automation require review against the selected implementation; no certification or complete suite coverage is implied.

Technical context

Independent testing

AC/DC Measurement Station Planning

Plan a shared workspace without treating AC and DC charging as interchangeable. Separate connection methods, measured quantities and energy handling for each station mode.

AC and DC testing comparison

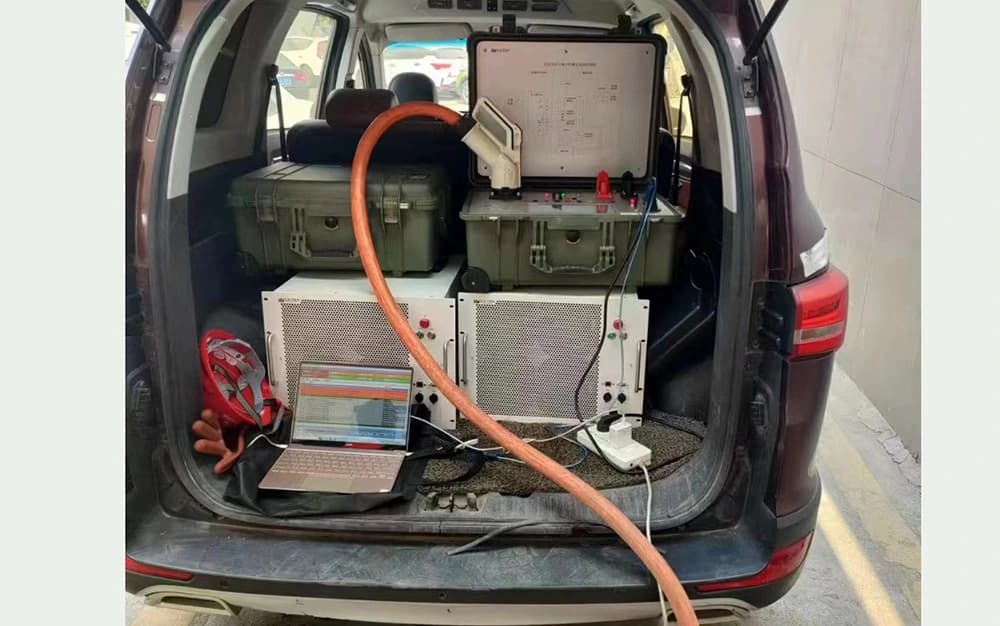

Vehicle carrying portable charging-test instruments, loads and a laptop
Planning checklist

Requirements to confirm

  • List AC and DC variants, connection ratings and the purpose of each measurement.
  • Define mode-specific fixtures, instruments, interlocks and source or load arrangements.
  • Control program selection and record the active station configuration with each result.

Review output

An AC/DC station configuration matrix with mode-specific responsibilities.

Scope: A combined station concept does not establish that one tester covers every interface, measurement or accuracy requirement.

Technical context

Independent testing

Charging-Site Inspection Plan

Set a site inspection boundary around installed assets, permitted checks and the evidence needed for handover or follow-up, rather than an unrestricted site-wide conclusion.

Post-installation testing guide
Planning checklist

Requirements to confirm

  • Identify inspected assets, connectors, site conditions and the purpose of the visit.
  • Agree safety preconditions, access limits and available power-absorption equipment.
  • Define asset-level checks, finding records and responsibility for unresolved items.

Review output

An asset-linked inspection checklist with exclusions and a finding register.

Scope: The inspection plan does not replace site safety procedures or establish acceptance of assets that are not checked.
