Custom DC Test Scope

Turn a specialized DC charger request into a reviewable specification that separates standard equipment functions from fixtures, software and external power integration.

Test system configuration guide
Planning checklist

Requirements to confirm

  • Describe charger variants, intended checks, operating ranges and explicit exclusions.
  • Assign custom fixtures, control interfaces, protection and external equipment ownership.
  • Define acceptance checks, evidence formats and configuration-change responsibilities.

Review output

A custom-scope matrix with feasibility questions and an acceptance review outline.

Scope: Requested custom functions remain proposals until engineering review confirms the configuration and scope.

Technical context

Charger manufacturing

Embedded End-of-Line Planning

Position charger checks within the production flow while keeping identity, program selection and failure handling traceable at the station boundary.

Production test reference architecture

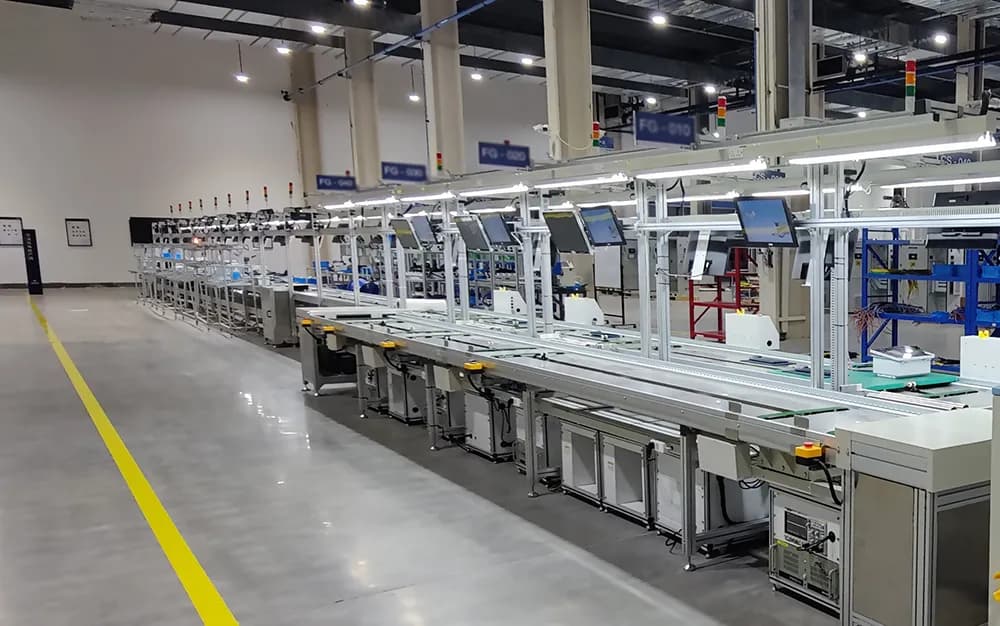

Test stations arranged along an assembly line
Planning checklist

Requirements to confirm

  • Map product variants and likely assembly or configuration faults to station checks.
  • Define fixtures, operator steps, reference checks and the target cycle-time budget.
  • Specify serial-number records, retest authorization and proposed manufacturing data interfaces.

Review output

A station workflow and traceability schema with controlled failure and retest paths.

Scope: Cycle time, data-system integration and automatic operation are project requirements to review, not demonstrated production results.

Technical context

Vehicle engineering

Vehicle Charging Interaction Plan

Plan vehicle-side charging sessions around the interfaces and state transitions under investigation, distinguishing simulated behavior from the actual vehicle implementation.

Vehicle-charger protocol planning guide
Planning checklist

Requirements to confirm

  • Identify the vehicle-side role, AC or DC interface and software configuration.
  • Select connection, readiness, charging, stop and controlled exception sequences.
  • Define the messages, pilot states and electrical observations retained for each session.

Review output

A vehicle-side session matrix with implementation assumptions and evidence requirements.

Scope: The plan does not establish a vehicle development system offering or compatibility with unreviewed implementations.

Technical context

Vehicle engineering

Charging Message Validation Plan

Translate communication questions into explicit message conditions, state dependencies and expected reactions so that an unexpected response can be reviewed in context.

Communication test planning guide
Planning checklist

Requirements to confirm

  • Identify protocol editions, message fields and implementation options in scope.
  • Define valid references, controlled invalid conditions and timing assumptions.
  • Retain message captures, session state and the reason behind each planned verdict.

Review output

A message-validation worksheet with reproducible conditions and reviewable verdict rules.

Scope: Message checks cover the selected cases only; they do not establish complete protocol conformance or vehicle reliability.

Technical context

Charger manufacturing

Automated DC Production Test Planning

Define what a DC charger station should control, measure and record before selecting an automation approach. Keep fast line decisions separate from detailed fault diagnosis.

End-of-line testing planning guide
Planning checklist

Requirements to confirm

  • Map variants to test programs, fixtures, electrical limits and required operator actions.
  • Set station preconditions, sequence dependencies, stop rules and diagnostic routing.
  • Specify measurements, software versions, results and authorized retests in the data record.

Review output

An automation requirement matrix with station boundaries and serial-number record fields.

Scope: Automatic adjustment, cycle time and manufacturing-system interfaces require separate configuration and acceptance review.

Technical context

Charger manufacturing

Ultrafast Charging Load Planning

Review the energy path for a proposed ultrafast charging test, separating the requested operating envelope from the ratings and limitations of each connected component.

High-power load planning guide
Planning checklist

Requirements to confirm

  • State simultaneous voltage and current, peak and continuous duties, and transition profiles.
  • Review load capacity, supply, regeneration permissions, cables, cooling and protective controls.
  • Define measurement points, operating limits and safe termination conditions.

Review output

A load-path and facility checklist with duty limits and unresolved equipment questions.

Scope: Ultrafast is a planning context, not a claimed power rating or an observed test result; the complete energy path needs review.
